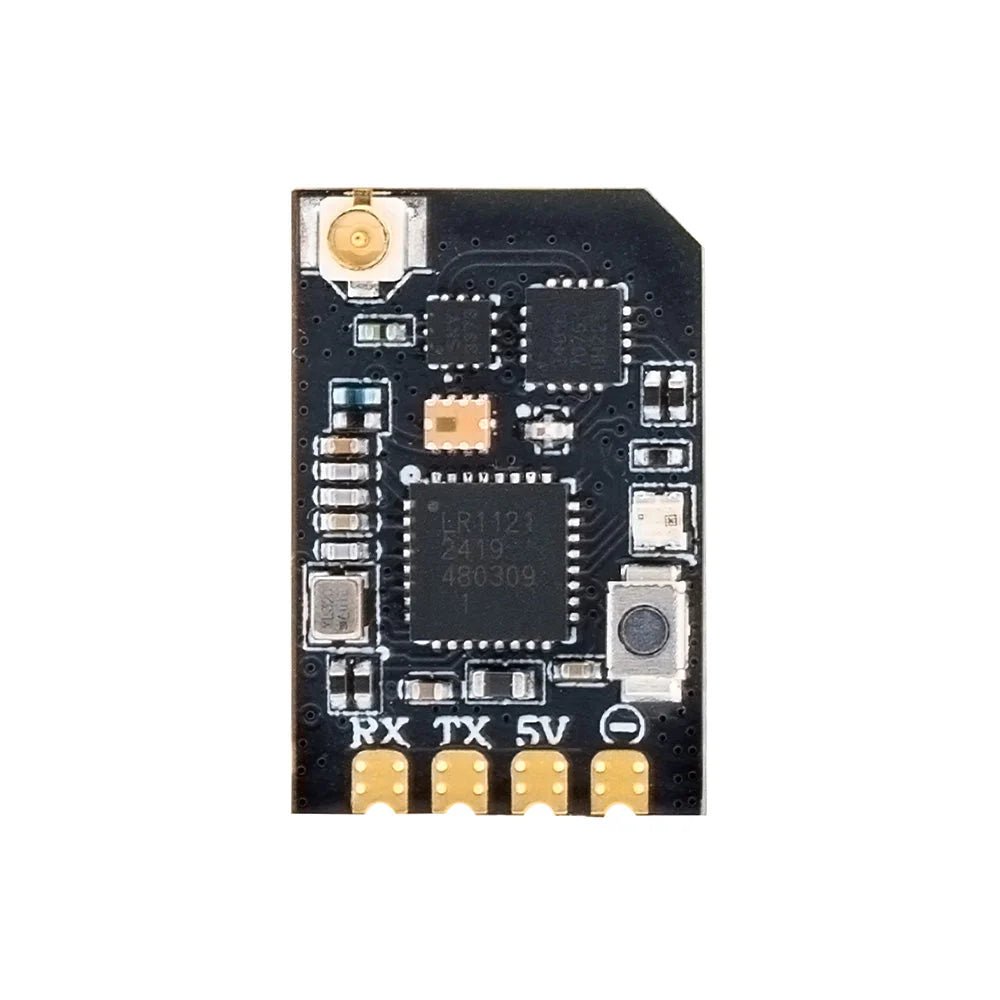

Radiomaster XR1 Nano Multi-Frequency ExpressLRS Receiver – Dual Band
High Performance
Premium components for smooth and reliable FPV performance.
Plug & Play
Easy installation and compatible with most FPV builds.
100% Genuine Products
Authentic products sourced directly from trusted FPV brands.
Pan India Shipping
Fast dispatch and delivery across India.
Product Description
XR1 ExpressLRS Receiver Dual Band 2.4GHz 900MHz – Nano FPV Receiver
The XR1 ExpressLRS receiver dual band 2.4GHz 900MHz is an ultra-compact and versatile receiver designed for FPV drones and RC systems. It supports both 2.4GHz and Sub-G 900MHz frequencies, providing excellent flexibility, long-range capability, and reliable signal performance.
The XR1 ExpressLRS receiver dual band 2.4GHz 900MHz is powered by the advanced Semtech LR1121 transceiver and ESP32C3 MCU. As a result, it delivers fast response, ultra-low latency, and strong signal sensitivity in a lightweight form factor.
Features
- Telemetry RF power: 100mW
- ExpressLRS 2.4GHz or Sub-G 900MHz
- ESP32C3 high-performance MCU
- Semtech LR1121 2.4GHz & Sub-G 900MHz Transceiver
- Secondary UART port
- Castled pads for easy soldering
Specification
- Item: XR1 Nano Multi-Frequency ExpressLRS Receiver
- Type: ISM2.4 or FCC915
- MCU: ESP32C3
- RF chip: Semtech LR1121
- RF connector: IPEX-1
- Antenna: 1x T-Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)
- Frequency Range: 2.4GHz or Sub-G 900MHz
- Telemetry Power: 100mW
- Maximum Packet rate: DK500Hz / K1000Hz
- Minimum Packet refresh rate: 50Hz
- Working voltage: 5V
- Weight: 1.0g (without antenna)
- Dimension: 20mm * 13mm * 3mm
- Firmware Version: ExpressLRS v3.5.1 pre-installed
- FW Target: RadioMaster XR1 2.4/900 RX
- Bus interface 1: CRSF
- Bus interface 2: UART
Tailored to Your Needs
The XR1 Receiver is available in three configurations, ensuring you have the flexibility to meet your exact requirements: Choose between 2.4GHz, Sub-G 900MHz, or a Dual-Band antenna that allows switching between 2.4Ghz and 900Mhz without an antenna change! All antenna types are available as optional accessories so you can change frequency at a later stage without needing to purchase a new receiver!
Weight
Dimensions
Download
Package Includes
- 1 * XR1 Nano Multi-Frequency ExpressLRS Receiver
- 1 * T Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)
- 1 * CRSF wire
- 3 * Heat-Shrinkable Tube
- 1 * Manual Card
